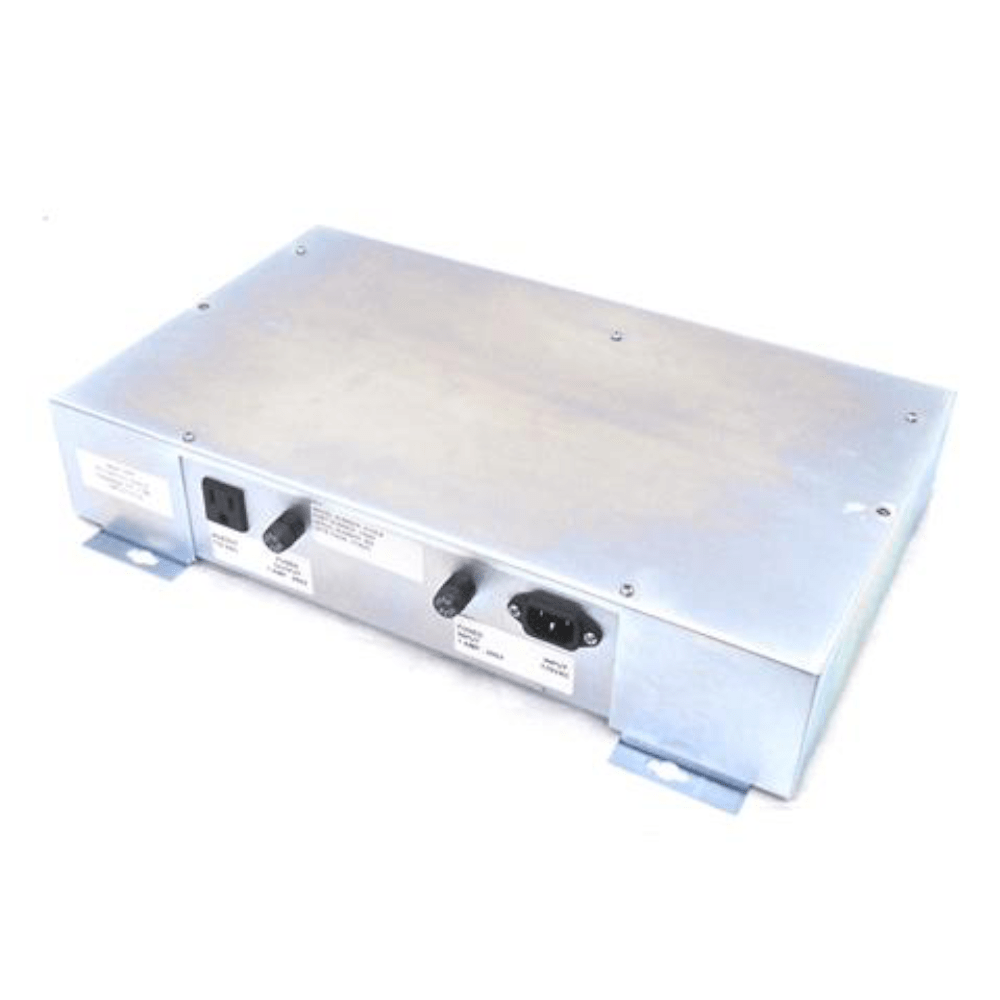

Description
Part numbers:
- 8 Zone = A705-8
- 16 Zone = A705-16
Key features:
- Single power input
- Power and tip and ring outputs for 8 or 16 telephones
- Auxiliary 110V power output
- RJ-11 telephone jack inputs
- Quick release connections for all outputs
- Easy wall mounting
- 19″ rack mounting capability
- Rugged steel construction
Specifications:
- Dimensions: 17.25” H x 12.65” W x 3.5” D
- Weight
- A705-8: 13.5 lbs.
- A705-16: 19 lbs.
- Mounting Centers: 12.75” H x 11.95” W
- Material: 16 ga (0.062”) zinc chromate steel
- Power: 110-120VAC, 60Hz, 45W
- Output: 9-18VDC, 300mA
- Maximum Distance to Phone: 1,000’ with 22 AWG wire, 2000’ with 19 AWG wire
- Aux AC Output: 110VAC, fused 1A
- Operating Temperature: -40° to 122° F (-40° to 50° C)
